Product Number: 005-OR650-18D
4" Nav pad base
WOW! This product now simply puts a LED NAV Light and Strobe combination available to all the older aircraft from Piper Cubs and on.
It also opens up the experimental aircraft categories and the Light Sport Aircraft for the same incredible lighting.

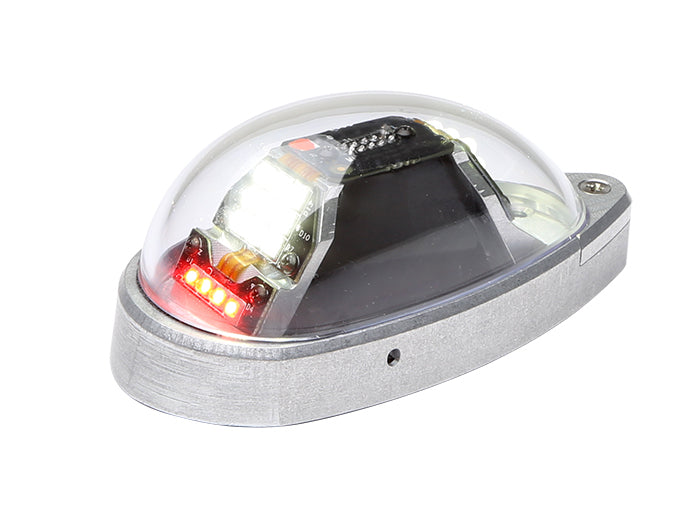

Amazing light intensity with self contained LED strobe technology and LED Nav light all in one!
Whelen Engineering is proud to introduce the NEW ORION650 Series of FAA/TSO approved LED aviation lighting.
Incorporating the latest state-of-the-art LED Technology available in an all-inclusive package, the ORION650 series eliminates the need for external flasher boxes.
Flush mountable for a wide variety of applications with minimal integration and easily retrofittable to the Whelen legacy strobe products.
The ORION 650 series is quite simply the brightest form of LED Anti-collision and Position lighting available.
12v or 24v applications.
Red or Green combinations
Model Part Number Description
OR6501G 01-0790725-01 Wingtip PTA Green (Right) 12 VoltOR6501R 01-0790725-02 Wingtip PTA Red (Left) 12 Volt
OR6502G 01-0790725-11 Wingtip PTA Green (Right) 28 Volt
OR6502R 01-0790725-12 Wing tip PTA Red (Left) 28 Volt
Approval Basis: FAA-TSO Approved
Replaces: 4" Base Nav/Strobe Assemblies
Brand: Whelen Strobes / Lighting
Approval Basis: FAA TSO-C96a Class III / TSO-C30c Type
Specifications: Weight: 0.26 lbs
Current Draw: 12V / 28V 0.30 / 0.15
Amps Position 0.70 / 0.35 Amps Avg. ACL
Lenses: Clear Hard coated Polycarbonate

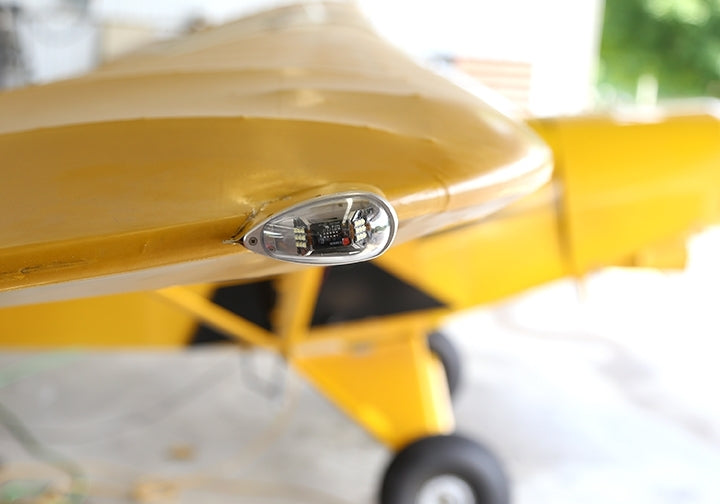

Replaces: Lighting for all aircraft with the small 4" Nav light pad base size from piper cubs and on, Any manufacture.
This also includes experimental and light sport aircraft with the 4" Nav pad base.
This application does not fit the Cessna models that have the conical droop style wing tips.
